Configuring LDAP Support Settings

Follow these steps to configure settings for LDAP support:

1.	Navigate to the Configure Host dialog and click the LDAP Settings tab.

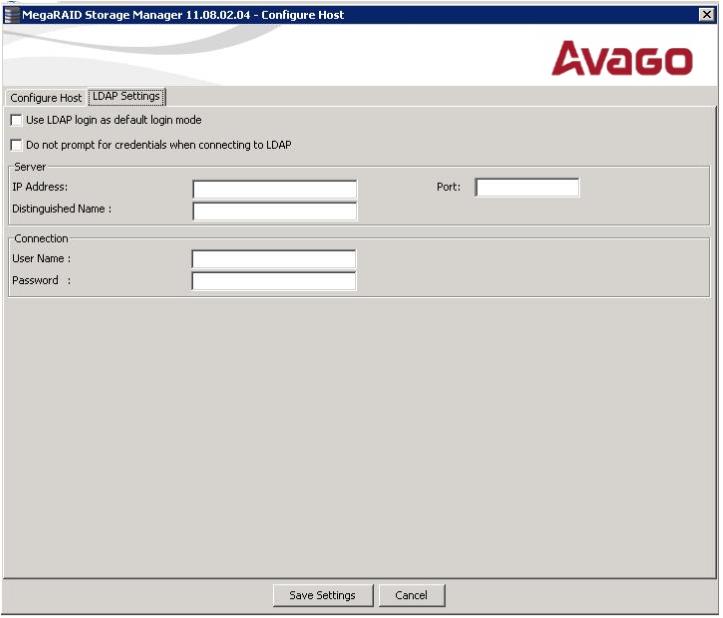

Figure 10. Configure Host (LDAP Settings)

2.	Select the Use LDAP Login as Default Login Mode check box to always connect to the LDAP server.

3.	Select the Do Not Prompt for Credentials when Connecting to LDAP check box if you do not want the LDAP Login dialog to appear when connecting to the LDAP server.

4.	Enter the IP address of the LDAP server in the IP Address field.

5.	Enter the port number in the Port field.

6.	Enter the name of the domain controller in the Distinguished Name field.

7.	Enter the user name and password for logging into the LDAP server in the User Name and Password fields respectively.

8.	Click Save Settings to save all the values entered in the fields in the msm.properties file.
